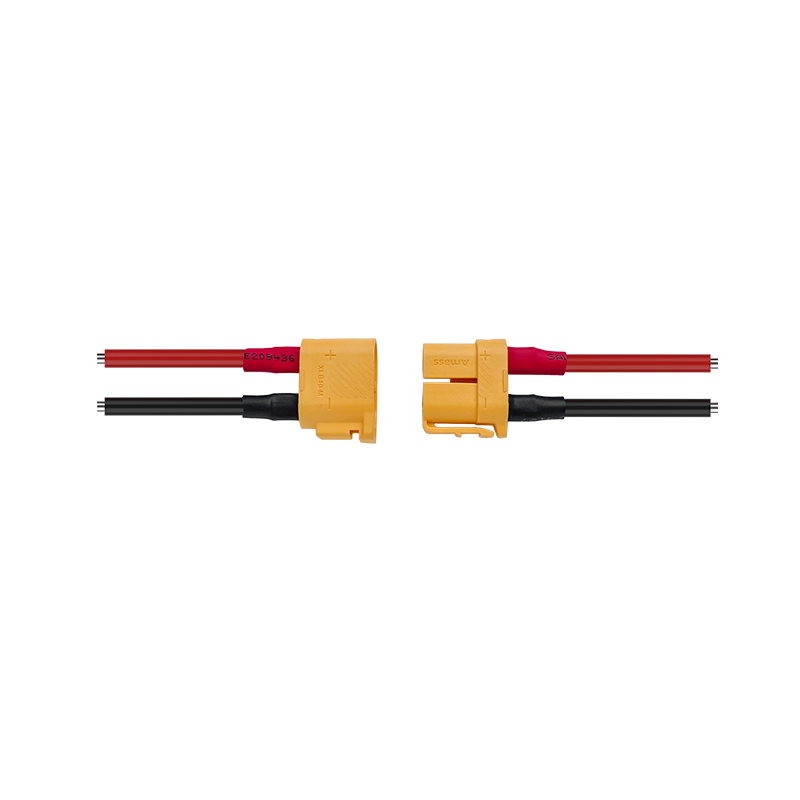

This upgraded XT series crimp terminal harness uses UL3135 14AWG red/black bicolor wire (standard length 50mm), with one end stripped and tin-plated, and the other end connecting to the XLB30-F/XLB30-M connector. The harness uses high-purity tin-plated copper conductors, resulting in low DC resistance, minimizing energy loss, and features optimized heat dissipation design to ensure stable high-current operation. It is suitable for applications such as new energy equipment, power control cabinets, electronic communications, and electric vehicle charging stations, and is available in custom lengths.
제품 번호 :
UL3135지불 :
Advance Payment제품 원산지 :
China색상 :
Red/Black선적항 :
According To Customers Wishes리드타임 :
15-20 days가격 :

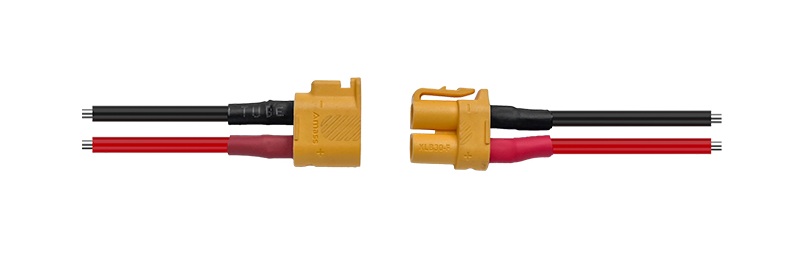

FOB Price50MM XT30 Crimp Wire Harness | Low Resistance Power Connection Cable
This newly upgraded XT series crimp terminal wiring harness is engineered for superior performance in demanding power and electronic systems. Constructed with high-purity UL3135 14AWG red and black tinned copper conductors, this assembly features a standard 50mm length, with one end precision-stripped and tinned for seamless integration and the other equipped with XLB30-F/XLB30-M connectors.Designed to provide low DC resistance and high efficiency, it significantly reduces energy loss during transmission. Its scientific wire gauge selection and advanced thermal design ensure that temperature rise remains controllable even under continuous high-current operation, preventing performance decay. This harness is an ideal solution for new energy equipment, EV charging stations, power control cabinets, and electronic communication devices, with lengths fully customizable to meet specific project requirements.
Specifications
| Parameter | Specification |
| Product Type | XT Series New Upgrade |
| Wire Standard | UL3135 |
| Wire Gauge | 14AWG |
| Color & Length | Red/Black, L=50MM (Customizable to any length) |
| Terminal Configuration | one end stripped and tinned, the other end connected to XLB30-F/XLB30-M |
| Conductor Material | High-purity tinned copper |
| Performance Profile | Low impedance, optimized current-carrying capacity |
| Customization | OEM/ODM supported for length, wire gauge, and terminals |
Key Features:
Superior Electrical Efficiency: Engineered with high-purity tinned copper conductors and precision craftsmanship. This specialized construction achieves exceptionally low DC resistance, significantly reducing energy loss during transmission and maximizing overall system efficiency.
Advanced Thermal Management: Utilizing a scientifically selected wire gauge paired with an optimized heat dissipation design. This ensures that temperature rise remains strictly controllable, maintaining peak performance and preventing power degradation even during continuous, high-current operation.
Reliable High-Current Interface: Features a robust dual-ended configuration with a UL3135 14AWG red and black assembly. One end is precision-stripped and tinned for seamless integration, while the other is equipped with XLB30-F/XLB30-M connectors, providing a secure and stable connection for new energy and industrial applications.
Applications:
Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.
After-sale Service:
Packing & Delivery:
 |
 |
FAQ:
1. What is the temperature and voltage rating?
It uses standard UL1007 22AWG wire, rated for 80°C and up to 300V, ensuring safe operation in high-demand environments.
2. How do you ensure connection reliability?
Every harness undergoes 100% electrical continuity checks and mechanical pull-force testing before shipment to guarantee secure, flawless connections.
3. What is the MOQ and lead time?
We offer flexible MOQs to support your needs. The typical lead time for custom or bulk orders is 7 to 15 working days.
