How Do XT30 and XT90 Connectors Impact Performance in Professional RC and FPV Systems

You need to choose the right connector for your RC or FPV setup to maximize performance. The Custom Battery Pack Cable Harness Connector gives you reliable connections for demanding applications. The xt30 xt90 connector suits different power levels. XT30 works best for micro drones and small vehicles. XT90 fits high-powered RC models and racing drones. Your connector choice affects system efficiency, reliability, and power delivery. Look at your rc battery connector needs, size limits, and compatibility with rc car battery connectors to select the best option.

Key Takeaways

• Choose the right connector for your RC setup to maximize performance and reliability.

• XT30 connectors are ideal for micro drones and small vehicles, while XT90 connectors suit high-powered models.

• Always match the connector's current rating to your system's power demands to prevent overheating.

• Proper installation of connectors enhances safety and extends the life of your RC equipment.

• Check compatibility between connectors, batteries, and electronic speed controllers for optimal performance.

XT30 XT90 Connector Performance

Current Handling

You need to match the connector to your rc system’s power demands. The xt30 xt90 connector options give you flexibility for different setups. XT30 connectors handle up to 30 amps of continuous current. XT90 connectors support much higher currents, reaching up to 90 amps continuously. This difference matters for rc vehicles and drones that draw a lot of power. If you use a connector that cannot handle your current, you risk overheating and power loss.

Here is a table that compares the current ratings for popular rc battery connector types:

XT30 connectors work best for micro drones, small rc cars, and lightweight planes. XT90 connectors fit large rc trucks, high-performance boats, and heavy-lift drones. You should always check your rc car battery connectors to make sure they match your system’s needs.

Voltage Efficiency

Voltage efficiency affects how much power reaches your motors and electronics. The xt30 xt90 connector design reduces resistance, which helps keep voltage drops low. Lower resistance means more efficient power delivery. XT90 connectors have larger contact surfaces, so they lose less voltage under high loads. This feature makes them ideal for high-current connections in demanding rc applications.

XT30 connectors also perform well in smaller systems. They keep voltage drops minimal for micro drones and small rc vehicles. If you want even better reliability, you can choose XT30PW Power Connectors. These connectors use gold-plated contacts and high-quality nylon for stable voltage and long service life. They also support up to 15A continuous current and work in a wide temperature range, making them a solid choice for many rc setups.

Heat and Safety

Heat management is critical in rc systems. The xt30 xt90 connector types both use materials that resist heat and prevent melting. XT90 connectors handle more heat because they support higher currents. This feature keeps your rc system safe during long runs or heavy loads. XT30 connectors stay cool in micro builds and small rc cars.

Here is a table showing common use cases and current ratings for each connector:

You should always pick the right rc battery connector for your application. This choice helps prevent overheating and keeps your rc system reliable. The xt30 xt90 connector selection impacts both performance and safety. If you want to avoid connector failures, check your rc car battery connectors before every flight or drive.

Tip: For high-current connections, always use connectors rated above your system’s maximum current draw. This practice improves safety and extends the life of your rc equipment.

RC Battery Connector Practical Factors

Size and Weight

You need to consider size and weight when choosing rc battery connector types for your rc setup. Smaller connectors like XT30 fit micro drones and lightweight rc vehicles. Larger connectors such as XT90 suit high-powered rc cars and heavy-lift drones. The connector types you select affect the total weight and balance of your rc model. If you use a connector that is too large, you may add unnecessary weight. If you choose a connector that is too small, you risk limiting your maximum continuous current. Always match the connector size to your rc system’s power needs and physical constraints.

Installation Tips

Proper installation ensures reliable performance from your rc battery connector. Follow these steps for best results:

1. Use high-quality, lead-free solder with a flux core.

2. Pre-tin both connector tabs and wire ends before joining.

3. Apply heat efficiently to avoid damaging the plastic housing.

4. Use heat-shrink tubing to insulate connections completely.

5. For XT90, use 8-10 AWG silicone wire; for XT60, use 10-12 AWG silicone wire.

6. Always use stranded copper wire for flexibility.

7. Match the wire gauge to your system's maximum continuous current.

8. Regularly inspect for signs of heating or discoloration.

9. Clean contacts with electrical contact cleaner periodically.

10. Ensure secure engagement with an audible click during connection.

11. Replace connectors showing any signs of melting or deformation.

Tip: Careful installation improves safety and extends the life of your rc car battery connectors.

Compatibility

Compatibility matters when you select rc battery connector types for your rc system. You must check that your connectors fit both your battery and electronic speed controller (ESC). Many popular rc battery brands and ESCs use XT30 or XT90 connectors. The table below shows how XT90 connectors interface with common rc components:

You should always check compatibility between your rc battery connector and your rc car battery connectors. Battery connector selection depends on your system’s power requirements and the max continuous current you expect. If you match connector types to your rc setup, you improve reliability and performance.

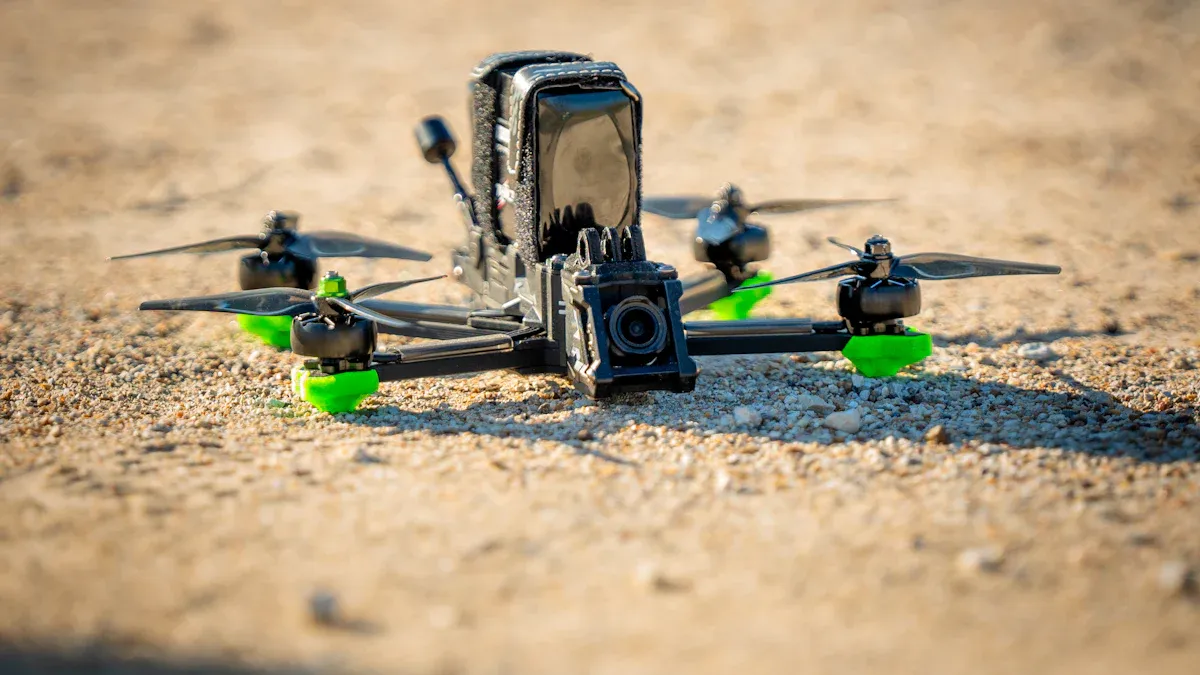

FPV Drone Battery Connectors Use Cases

Micro and Lightweight Builds

You want your micro FPV drone to stay agile and efficient. Connector choice impacts flight time, voltage stability, and overall performance. XT30 connectors stand out for micro builds that draw higher current. They deliver minimal voltage sag, which means your motors get consistent power during aggressive maneuvers. XT30 connectors weigh more than some alternatives, so they may not suit tiny whoops. Larger micro FPV drones benefit from XT30, especially when you need to handle 20A or more.

• XT30 connectors provide stable voltage and reliable power delivery.

• They fit micro quads and 2-3 inch racers that require higher current.

• You avoid power loss and overheating by matching connector size to your drone’s demands.

Manufacturers recommend XT30 for micro quads and smaller racing drones. You should check your rc battery connector and rc car battery connectors to ensure compatibility and optimal performance.

High-Power and Racing Drones

You need robust connectors for high-power FPV racing drones. XT90 connectors excel in these demanding setups. They support 90A continuous and up to 120A burst current. The solid grip design prevents accidental disconnects during intense races. Anti-spark technology reduces electrical arcing, which protects your electronics and improves reliability. XT90 connectors work best for heavy lift drones and commercial UAVs that require maximum power delivery.

• XT90 connectors handle high current and voltage for racing drones.

• Secure connections keep your drone safe during rapid maneuvers.

• Anti-spark features enhance safety with high-voltage LiPo batteries.

Manufacturers suggest XT90 for 6S or heavier battery systems. XT60 connectors fit mid-power setups like 5-7 inch racing quads. You can compare connector options in the table below:

Tip: Always match your fpv drone battery connectors to your drone’s power requirements. This practice improves efficiency and reliability.

You can find secure, high-performance connectors for racing drones, such as the XT90PW Battery Connector, which offers enhanced safety and power delivery for demanding FPV applications.

You need to choose the right connector for your rc setup. XT30 connectors fit micro rc drones and small rc vehicles. XT90 connectors suit high-powered rc models and racing drones. The table below shows key factors for connector selection:

You should match the connector type to your rc battery and system specifications. Monitor voltage sag and connector temperature during testing. Consider space constraints and power requirements for your rc model. Use motor and propeller test data to guide your rc connector choice. XT90 connectors offer higher current capacity and durability for demanding rc applications. XT30 connectors provide compact size for lightweight rc builds. For secure and reliable connections in high-power rc systems, you can use the XT90PW Battery Connector.

FAQ

What is the main difference between XT30 and XT90 connectors?

XT30 connectors handle lower current and fit smaller RC or FPV builds. XT90 connectors support higher current and suit large, high-powered models. You should match the connector to your system’s power needs.

Can I use XT30 connectors for high-power racing drones?

You should not use XT30 connectors for high-power racing drones. XT90 connectors deliver more current and provide safer connections for demanding setups. XT30 works best for micro drones and lightweight builds.

How do I choose the right connector for my RC car?

You need to check your car’s maximum current draw and battery size. XT30 fits small cars with low power. XT90 suits large cars with high power. Always select a connector that matches your system’s requirements.

Are XT30PW and XT90PW connectors better than standard versions?

XT30PW and XT90PW connectors use gold-plated contacts and durable nylon. You get improved voltage stability and longer service life. These connectors offer reliable performance for professional RC and FPV systems.

What safety tips should I follow when installing connectors?

You should use proper wire gauge, pre-tin contacts, and heat-shrink tubing. Always check for secure engagement and inspect for signs of overheating. Clean contacts regularly to maintain reliable connections.
